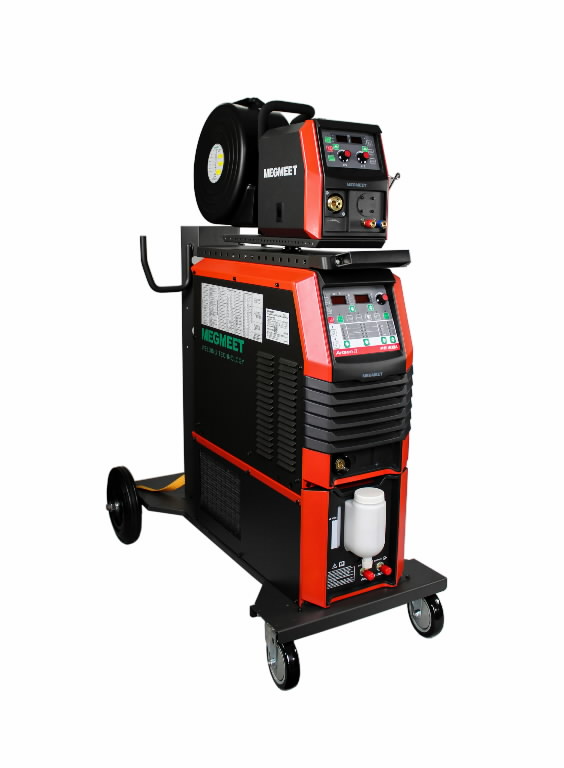

Artsen II PM 400 F (Water-cooled Package)
Water-cooled Package
Artikelnr. | Configuratie | Prijs |
R06020228 | Power Source Artsen II PM 400 F (400A / 100% @ 40°C | € 2.133 |
/ | Input Power cable (3m) with AC 3-PH input connector (5-pin) | / |
R13400891 | Manual wire feeder (WF 2-50ZT, Euro Connector) | € 880 |
R29140283 | Wheels for wire-feeder (4 pcs) | / |
R30042413 | Up / down Torch connector | / |
E000000023 | Water-cooled Inter-connection cable (5m * 70mm² with rubber sleeve 1pc) Manual | € 429 |
E000000041 | Ground cable with Copper clamp (5m * 70mm²) | € 135 |
R13401653 | Convenience Trolley (Handle / hook for cables / space for gas cylinder) | € 422 |
R11200288 | Cooling Unit: AnyCool 100 series | € 838 |
Technische specificaties
Input | 380V + / - 25% 3f / 50Hz |
Current Range | 30 - 400 A |
Duty Cycle | 400 A @ 100% |
Welding Modes | 2T - 4T / Special 4T / Spot Welding / Intermittent Welding |
Welding Programs (mild steel only): | - solid wire 0,8/1,0/1,2mm at 100% CO2 and 80% Ar + 20% CO2 - flux cored wire 1,2mm at 100% CO2. - single pulse 0,8/1,0/1,2mm. - double pulse 0,8/1,0/1,2mm. |
Wire Range | 0.8 - 1.2 mm |
Protection Class | IP23S |
