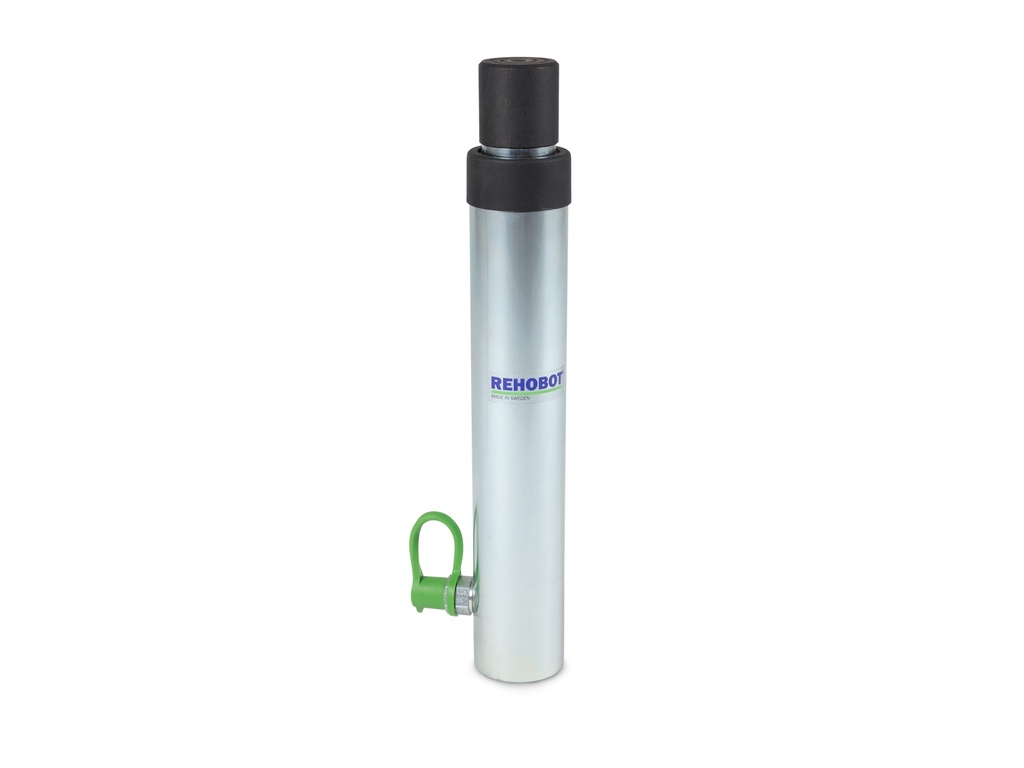

CF210C - Push cylinders CF/CFU

https://www.lenmatec.eu/web/image/product.template/1448/image_1920?unique=0973071

516,50 € 516.5 EUR 516,50 €

516,50 €

Not Available For Sale

    Deze combinatie bestaat niet.

    Rehobot

    Algemene voorwaarden


    Metric Measurements

    Name

    Item code

    Working press. MPa

    Capacity kN (t)

    Stroke mm

    Stroke volume cm³

    Diameter mm

    Height mm

    Weight kg

    CF104B

    27485

    70

    49 (5)

    127

    90

    37.5

    267

    1.7

    CF204B

    27486

    70

    49 (5)

    200

    142

    37.5

    340

    2.4

    CF110C

    43829

    70

    111 (11)

    150

    239

    56.5

    321

    4.7

    CF210C

    43830

    70

    111 (11)

    200

    318

    56.5

    372

    5.5

    CF310C

    43831

    70

    111 (11)

    300

    477

    56.5

    474

    7.0

    CF120A

    24178

    70

    232 (24)

    127

    422

    84

    337

    10.2

    CF220A

    24973

    70

    232 (24)

    200

    664

    84

    410

    12.4

    CF320A

    24974

    70

    232 (24)

    300

    996

    84

    510

    16.0

    CFU2010C

    43837

    70

    111 (11)

    200

    318

    56.5

    387

    5.3

    CFU2510C

    43838

    70

    111 (11)

    250

    398

    56.5

    437

    6.0

    Imperial Measurements

    Name

    Item code

    Working press. psi

    Capacity kN (sh tn)

    Stroke in

    Stroke volume in³

    Diameter in

    Height in

    Weight lbs

    CF104B

    27485

    10000

    49 (5.5)

    5.0

    5.5

    1.5

    10.5

    3.7

    CF204B

    27486

    10000

    49 (5.5)

    7.9

    8.7

    1.5

    13.4

    5.3

    CF110C

    43829

    10000

    111 (12.5)

    5.9

    14.6

    2.2

    12.6

    10.4

    CF210C

    43830

    10000

    111 (12.5)

    7.9

    19.4

    2.2

    14.6

    12.1

    CF310C

    43831

    10000

    111 (12.5)

    11.8

    29.1

    2.2

    18.7

    15.4

    CF120A

    24178

    10000

    232 (26.1)

    5.0

    25.8

    3.3

    13.3

    22.5

    CF220A

    24973

    10000

    232 (26.1)

    7.9

    40.5

    3.3

    16.1

    27.3

    CF320A

    24974

    10000

    232 (26.1)

    11.8

    60.8

    3.3

    20.1

    35.3

    CFU2010C

    43837

    10000

    111 (12.5)

    7.9

    19.4

    2.2

    15.2

    11.7

    CFU2510C

    43838

    10000

    111 (12.5)

    9.8

    24.3

    2.2

    17.2

    13.2

    Operating Instruction

    Dimensional Drawing

    Spare Part List
